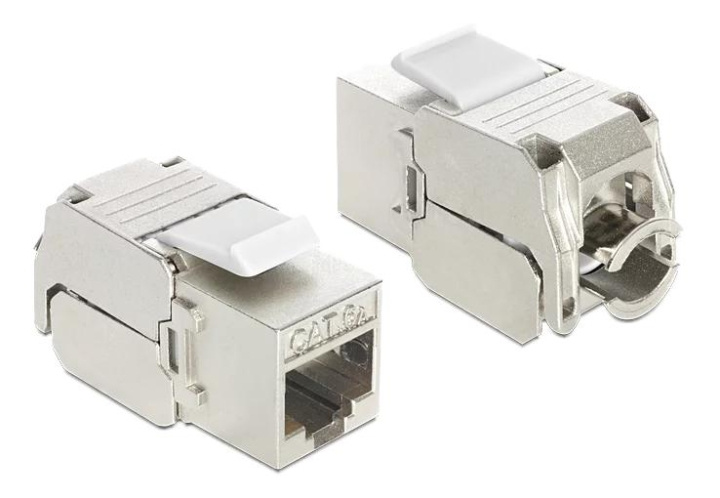

DeLOCK Keystone Module RJ45 jack > LSA Cat.6A STP

Artnr: C70738

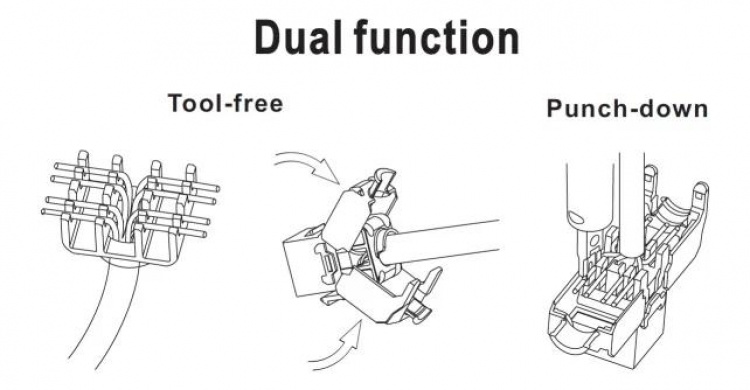

Connectors: external: 1 x RJ45 jack (8P/8C) > internal: LSA (toolfree)
Cat.6A specification
Shielded (STP)
Compliant with Cat.6A requirements of ISO/IEC 11801 Edition 2.2, EN 50173-1:2011 and EN 60603-7-51, and ANSI/TIA 568-C.2
Material: zinc die cast
TIA-568A/B pinout

129 kr

Snabb leverans - leveranstid framgår i kassan
Returrätt - 100 dagar öppet köp
Smidig betalning - Qliro Checkout
Ångerrätt - alltid 14 dagar
Pålitliga - läs kundomdömen på Prisjakt & Trustpilot

Produktbeskrivning

Anslutning 1:	RJ45-shielded-female
Anslutning 2:	Open end network
Bruttovikt:	0.024 kg
Färg:	Silver
Kabellängd:	0.03m
Kabelstandard:	Cat 6a
Kabeltyp:	Nätverk

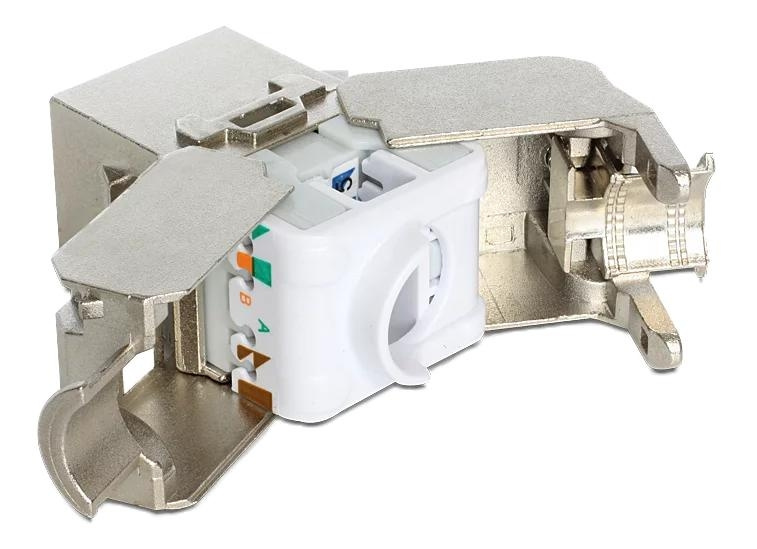

This module by Delock can be used to connect twisted pair cable to an RJ45 jack. With its standardised dimensions it can be used for easy snap-in mounting in e.g. a Keystone patch panel, face plate or surface-mount box.

Connectors: external: 1 x RJ45 jack (8P/8C) > internal: LSA (toolfree)
Cat.6A specification
Shielded (STP)
Compliant with Cat.6A requirements of ISO/IEC 11801 Edition 2.2, EN 50173-1:2011 and EN 60603-7-51, and ANSI/TIA 568-C.2
Material: zinc die cast
TIA-568A/B pinout
For solid or stranded wire up to 0.573 mm (23 - 26 AWG)
For cable diameter from 6.0 - 8.5 mm
For Keystone ports with 19.2 x 14.9 mm
Dimensions (LxWxH): ca. 37.8 x 16.0 x 22.5 mm

4043619862054EAN:
