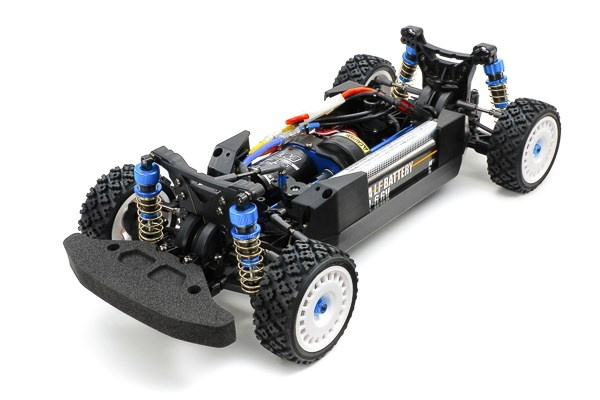

1/10 R/C XV-02 PRO Chassis Kit
Tamiya is proud to announce this shaft-driven 4WD chassis kit for rally cars, an addition to the XV chassis series that will be a popular addition to the R/C rally series.
About the Model
• This is a 1/10 scale R/C chassis assembly kit.
• Equipped with front mid-ship motor plus front and rear long propeller shafts of the some length.
• Comes with two 39T differential gears and one 40T differential gear for adjustment of front and rear drive balance.
• Use 39T gear (w/15T gear) on the front and 40T gear (w/15T gear) on the rear for drive balance bias to front and vice-versa for drive balance bias to rear.
• Features newly-designed parts such as gears, bathtub frame chassis, chassis cover, caster blocks featuring the 6-degree caster angle (XV-01 chassis: 10-degree caster angle), and bumpers with skid angles to reduce surface contact.
• Includes an aluminum servo mount.
• The motor mount, propeller shafts, input and center shafts, and urethane bumpers have new metal parts.
• It features a longitudinal battery pack position in the center-left for optimum balance.
• Long aluminum dampers are employed at front and rear.
• A polycarbonate chassis cover with wheel well liners helps prevent dirt and dust from getting inside.
• Suspension arms and front uprights are based upon the XV-01 chassis kit.
• Rally dish white wheels are paired with rally block tires.
• Please note, the XV-02 PRO Chassis Kit, does not include motor, please use a recommended Tamiya motor.
Please note, this version is without Radio and ESC, we recommend the RC set and ESC from Mstyle.
